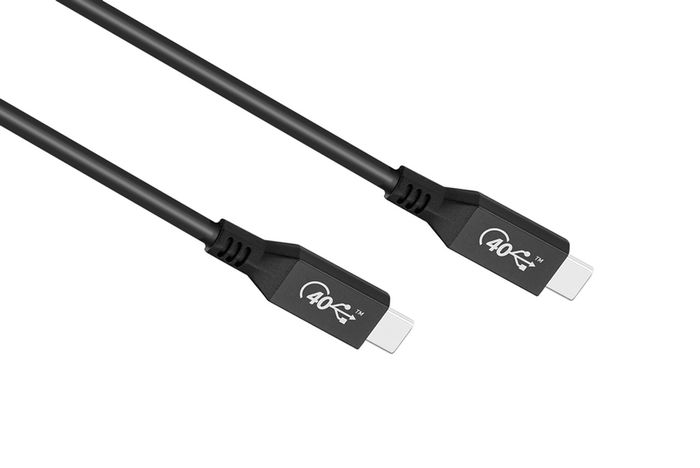

1M USB4 Cable Supports 40Gbps and 8K@60Hz Video
Product Features
PRODUCT DESCRIPTION
Description
USB4 Gen3 USB C Cable PD 100W 8K/60Hz Compatible Thunderbolt 3/4/DP/PCle USB-C to USB C 40Gbps USB4.0 Fast Cable for Mac Pro.
Specifications
The USB4™ specification compliments and build upon the existing USB 3.2 and USB 2.0 specifications. The USB4™ architecture defines a method to share a single high-speed link with multiple end device types dynamically that best serves the transfer of data by type and application.
As the USB Type-C® connector has evolved into the role of the external display port of many host products, the USB4™ specification provides the host the ability to optimally scale allocations for display data flow. Even as the USB4™ specification introduces a new underlying protocol, compatibility with existing USB 3.2, USB 2.0 and Thunderbolt 3 hosts and devices is supported; the resulting connection scales to the best mutual capability of the devices being connected.
USB4™ identifies two transfer rates, USB4™ 20Gbps at 20Gbps and USB4™ 40Gbps at 40Gbps.
USB4™ Key Messages
Two-lane operation using existing USB Type-C® cables
Doubles the bandwidth to extend USB Type-C® performance
Up to 40Gbps operation over 40Gbps-certified cables
Enables multiple simultaneous data and display protocols
Multiple data and display protocols efficiently share the total available bus bandwidth
USB4™ hosts can optimally scale allocations for display data flow
Backward compatibility with USB 3.2, USB 2.0 and Thunderbolt 3.
Features
1. PD 100W (20V 5A) Power Delivery Charge
2. 40Gbps bandwidth allows single 8K@60Hz outputs or dual 4K@60Hz video.
3. Supports up to 40Gbps transfer over USB4 hosts and devices
4. Compatible Thunderbolt3/4/DP/PCle devices including docking stations, external graphics cards, and displays.
Cable supports all USB generations; USB 1.1, 2.0, 3.0 and USB 3.2 Gen 1/Gen 2 USB4 Compatibility list for laptops/Smartphones(Not a full list): MacBook Pro 2016/2017/2018/2019 iMac compatible with Thunderbolt 3 port Microsoft Surface Book, Google Chromebook Pixel, Lenovo Yoga 900/910/920/720, ThinkPad P50/P70, Dell XPS, mDell Precision 5510, mDell Inspiration 15 7000, HP Spectre, Chromebook 13 G1,New Acer Switch Alpha 12, Acer Spin All Type C mobile phones such as Samsung Galaxy S8/S9/S10, Note8/Note9/Note10, Huawei, LG, OnePlus, Xiaomi, ZUK etc.
