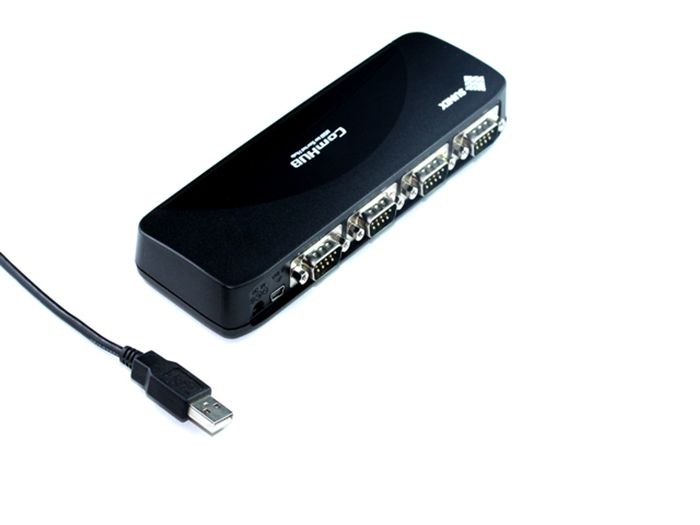

USB To 4 x Serial Port Adaptor 1.5M
Product Features
PRODUCT DESCRIPTION
Introduction
No longer would the usage of a serial or parallel device be restricted by the availability of the connectable ports on the desktop, laptop or work station system. With SUNIX ComHub USB Adapter, users now have the ability to convert the connection of their serial and parallel peripherals into USB (Universal Serial Bus) compatible. The adapter is compatible with both USB 2.0 and 1.1 specifications. The USB Full Speed connection offers data transfer rate up to 12Mbps. SUNIX ComHub provides serial ports with transfer speed up to 115.2Kbps.
SUNIX ComHub, USB to I/O Adapter utilized the high quality Prolific chipset, not only is the ComHub has passed the WHQL certification, it is also the most compatible and the most reliable. ComHub series come with the choice of 1/2/4 ports in RS-232 or Printer (LPT) for connection with devices such as barcode scanner, POS device, PDA, printer, and other mobile devices. SUNIX offers the most complete line of USB to I/O Adapter for all your connection needs.
Features
Expands 4 RS-232 ports on system via USB connection.
Supports Universal Serial Bus Plug-n-Play and Hot-Swapping feature.
No IRQ, DMA, I/O address resource required.
Supports USB1.1 full speed 12Mbps, and it is USB2.0 compatible.
Each serial port provides transmission rate up to 115.2Kbps.
Built-in ±15KV ESD protection for all serial signals.
Plug-n-Play, I/O address and IRQ assigned by BIOS.
Certified by CE, FCC, RoHS, and Microsoft WQHL approval.
Support Microsoft Windows, Linux, Mac and DOS
Specifications
Description
Product Description 4 ports USB to RS-232 Serial Hub
Serial Communication
Interface RS-232
Controller Prolific 2303Hx 16C550 UART Compatible
Bus Interface Universal Serial Bus (USB) 2.0 / 1.1
No. of Port 4-port
IRQ & IO Assigned by System
FIFO 16 byte (Hardware)
Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Baud rate 50 bps to 115.2 Kbps
Data bit 5,6,7,8
Stop bit 1,1.5,2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS (Hardware) , XON/XOFF(Software)
Protection ±15KV ESD protection for each signal Human Body Model (HBM)
Board connector DB9 Male
Driver Support
Microsoft 98/ME/2000/XP/2003/Vista/2008/7(32/64 bit)/CE5.0/XP Embedded
Linux Linux 2.4.x/2.6.x
MAC MAC 10.1, 10.4, 10.5 (Leopard)
Regulatory Approvals
Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, RoHS
Software Microsoft WHQL Window XP
Environment
Operating Temperature 0 to 60 °C ( 32 to 140 °F )
Operating Humidity 5% to 95% RH
Storage Temperature -20 to 85 °C ( -4 to 185 °F )
Power
Input USB Bus-power 5VDC External Power, DC Jack type
Consumption < 0.7W = 5V x 130mA
Mechanical
Dimension 180 x 70 x 26 mm
Cable Length 1500mm (5ft)
Case ABS
Weight 140 ± 5 g
