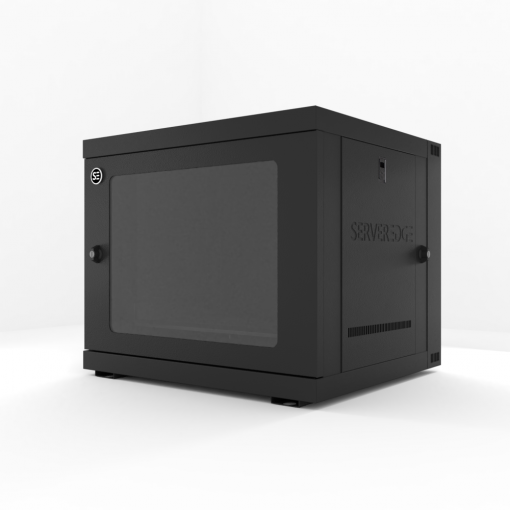

Serveredge 9RU Fully Assembled Hinged Wall Mounted Cabinet - 600W x 550D

Code:
RK-9RU500
Manufacturer Code:
CBN-9RU-66WM
$357.43 inc GST

Quote

Product Features

Serveredge Wall mount Swing Frame Cabinets and Enclosures are the ideal storage solution for the standard rack mount equipment in applications with limited floor space. Constructed with a hinged wall mounting bracket & a sturdy welded frame these racks can accommodate equipment up to 80 Kgs. The vertical mounting rails are adjustable and can accommodate any standard rack mount equipment. Swing Frame feature of this rack allows easy access to the rack mounted equipment through its easy removable enclosure that is hinged to swing frame from the wall mounting brackets. Serveredge wall mount swing frame enclosures also features perforated lockable removable side panel assuring generous airflow to keep equipment operating safely. The top and bottom panels of the enclosure include convenient cable routing ports. These wall mount swing cabinets ships fully assembled and comes with a 25-year manufacturer’s product warranty.





PRODUCT FEATURE






* Designed for limited space environments where equipment needs to be secure and out of the way
 * Adjustable front vertical rack mount rails
 * Locking, reversible front door and locking, removable side panels
 * Fully assembled for quick installation
 * Confirm to Standard ANSI/EIA RS-310-D, IEC297-2, DIN4191; PART1, DIN4194; PAT7, GB/T3047M 2-92
 * Warranty : 25-year





PRODUCT SPECIFICATION













































Installed whole system maximum rack depth (mm)



450



Rack Height



9RU



Shipping Dimensions (WDH/mm)



 650 X 600 X 554



Shipping weight (kg)



30



Unit Dimensions (WDH/mm)



 600 X 550 X 504



Unit weight (kg)



27



Colour



 Black



Weight Capacity - Stationary (kg)



 80



Grounding lug



 Front and Back Door Frames






PACKAGING INCLUDES






































Free Standing Rack



1



M6 screws



20



M6 cage nuts



20



M6 washers



20



Fixed Shelf



1



Keys



2



Owner's Manual



1
