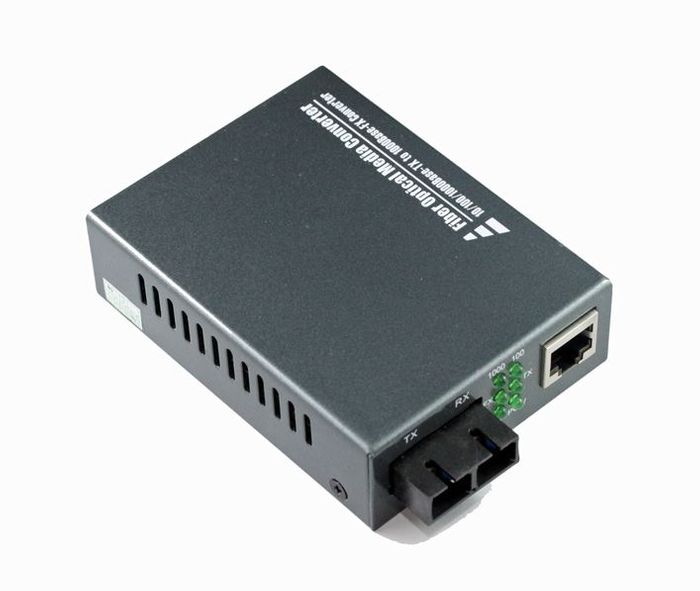

SC MM 10-100-1000 Gb 550m Fibre media converter

(0 reviews)
Code:
FB-MCMMSC1-1000-AU
Manufacturer Code:
CB-FO-52
$149.60 inc GST

Quote

Save
Enquire

Product Features

PRODUCT DESCRIPTION





Introduction


This series comply with IEEE 802.3/ab Gigabit Ethernet standard. It supports two types of media for network connection such as 10/100/1000 Base-Tto 1000 Base SX/LX and connects these two types of segments to operate smoothly


OPT-2200 series can be used in 16 slot chassis as plug in module


OPT-2200 series Fibre Media Converter transforms 1000Base-T (Copper Gigabit) media to 1000Base-SX/LX (Fibre Gigabit) media and vice versa. The 1000Base-T port supports full-duplex Gigabit connection at wire speed with RJ45 connector. The fibre Gigabit connection supports shortwave (SX) or long wave (LX) laser optic with multi-mode or single-mode SC type connector.


This converter will give your Copper Gigabit connection the ability to interface with fibre connection over a distance up to 80 km! 10/100/1000 means, that media converter that converts the electrical signal of a 10/100/1000 Ethernet signal from copper to fibre. This solution will offer a low-cost integration option for network managers who want to migrate from 10/100 networks to Gigabit Ethernet. Gigabit only switches can now be connected to 10/100 networks without the need to upgrade the 10/100 side, allowing network managers to add new equipment gradually


Features


Compliant with IEEE 1000Base-T and 1000Base-LX


One 10/100/1000Base-T RJ-45 port autosensing featured!


One 1000Base-LX/SX Port with/ SC/ST-Type Connector


Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed


Wall-Mountable, pluggable in universal chassis, or desktop


Available in SingleFibre WDM versions - 1310/1550 nm wavelengths used


Standards: IEEE802.3z/ab 1000Base-T 1000Base-SX/LX


LED Indicators: FX LINK, FX FDX, TP LINK, TP FDX, ACT, POWER


Data rate: 2000Mbps full duplex


TP: 1000 FDX with NWAY auto-negotiation


Wavelength Multi-mode: 850nm;


Fibre cable(m):


8.3/125, 8.7/125, 9/125 or 10/125 single-mode


Maximum distance: Multimode;550m


Power supply: 100 to 240VAC 50 to 60Hz


Input power: 2A +5V


Dimensions: 81mm(L)X105mm(W)X26.2mm(H)


Environment:  Relative humidity: 5% to 90%


Operating temperature: 0 to 70


 Storage temperature: -20 to 85
