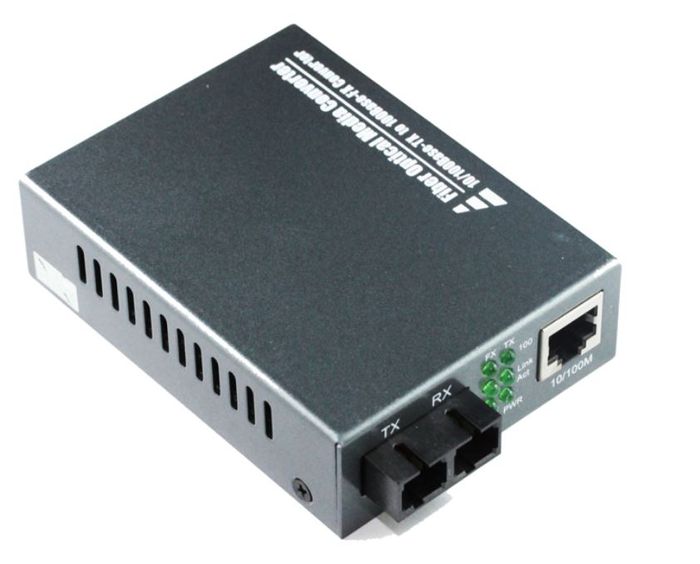

Image for illustration purposes, please see product info

SC SM 10-100 25km fibre media converter

(0 reviews)
Code:
FB-MCSMSC20-100
Manufacturer Code:
CB-FO-38
$83.60 inc GST

Quote

Save
Enquire

Product Features

PRODUCT DESCRIPTION





OVERVIEW


This media converter complies with IEEE802.3 standards, It is designed to convert data signal between 10/100 Base-TX and 100 Base-FX fast Ethernet. The media converter is connected between Fibre cable and twisted cable segments with network.


The media converter is connected between Fibre cable and twisted cable segments with network operating smoothly.


This converter can be used as stand-alone module to the 19 converter rack of 14 slot, also as card use to the 19 converter rack of 16 slot


Converter is transparent to all protocols, can be used all areas as Fibre to The Home, Fibre to the Business or Fibre to The Curb.


FEATURES



  • 10/100Mbps and full/half duplex automatically configure in TP port.

  • Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX Standards

  • MDI/MDI-X Auto Negotiation

  • LED Indicators: POWER, FX LINK/ACT, 100, TP LINK/ACT, FDX/COL.

  • Optional 19” System Chassis (OPT-R142) holds up to 14 Media Converters

  • Hot Pluggable & Wall-Mountable

  • ROHS & CE approved


Wavelength:  Single-mode: 1310nm, 1550nm


Fibre cable(m):


8.3/125, 8.7/125, 9/125 or 10/125 single-mode


Maximum distance: Single-mode;20km/(Default)


Power supply: 100 to 240VAC 50 to 60Hz


Input power: 1A +5V


Dimensions: 70mm(L)X94mm(W)X26mm(H)


Environment


Relative humidity: 5% to 90%


Operating temperature: 0 to 70


Storage temperature: -20 to 85


Standards


IEEE 802.3u 100Base-TX/FX


Connector


1 x RJ-45


1 x Fibre (SC; WDM)


Max. Distance


UTP: 100 meters (Cat. 5/5e/6)


Fibre: up to 20km (single-mode)


Unit LED


PWR: Green Illuminated for normal operation


FD: Green Illuminated when in full duplex mode


LNK: Green Illuminated when receiving link pulses from compliant devices


RCV: Yellow Illuminated or flashing when data packets are being transmitted / received


Power


Power Input: 5V DC, external power supply adapter


Frequency: 47Hz to 63Hz


Temperature


Operating: 0°Cto 50°C


Storage: -20°C to 70°C
