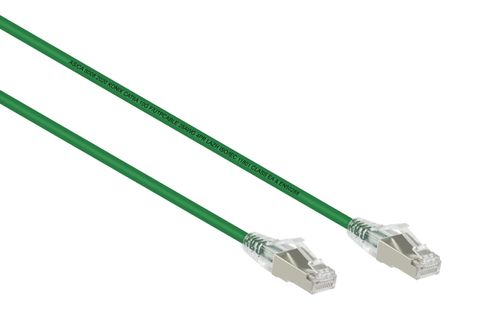

Cat6A LSZH STP ultra slim cables Konix GREEN
Product Features
PRODUCT DESCRIPTION
High-speed Ethernet transmission
10Gbps high-speed voice, video and data applications
Power over Ethernet ( PoE ) such as Wireless Access Point, Thermal Camera, VoiP, etc. Supports PoE Standard IEEE802.3bt Type 3 ( 60W )
Specifications
RJ45 Plug
Housing: 2 row, Polycarbonate, UL 94V-0, transparent colour
Wire bar: 2 row, OD 0.65 mm, polycarbonate, UL94V-0, transparent colour
Contact Pin materials: Phosphor Bronze with Nickel plated
Contact Pin finished: Minimum 50 Micro-inches on surface contact area
Shielding area: Bronze with Nickel plated
The structure complies with IEC60603-7 requirement
Strain Relief
Boot assembly type, OD 5.0mm. polycarbonate material, UL 940V-0, transparent colour
Tube: transparent heat shrink tube
Foil: Adhesive Aluminium foil
Cable
CAT6A F/UTP 4 twisted pair
The cable performance complies with the IEC 61156-5 requirement
Jacket OD: 4.6 mm , 0.55mm thickness
Conductor: 28AWG Solid Bare Copper
Isolation: HDPE
Cross Bar: PE
Shield: Aluminium foil / PET around all 4 pairs
Drain Wire : Tinned Copper-clad steel, 7x 0.10mm
Performance: The performance is complied with the ISO/IEC11801 CAT6A Patch Cord Component Requirement
