Cat6A LSZH STP cables Konix BLUE
Image for illustration purposes, please see product info

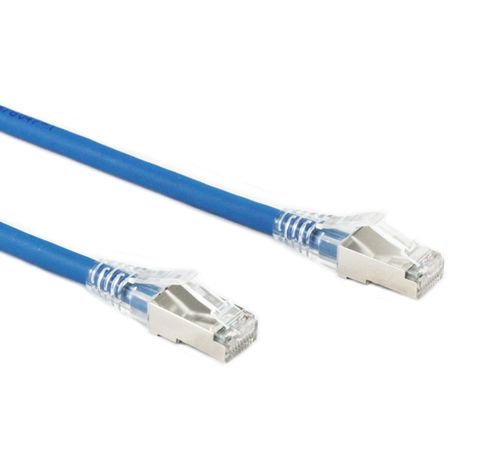

Cat6A LSZH STP cables Konix BLUE

Product Features

PRODUCT DESCRIPTION


The premium quality, high performance Konix Cat6A (Category 6 Augmented) cable is an ideal solution for 10G network. It supports the higher frequencies required for 10G ethernet and is fully backwards compatible with Cat6 and Cat5E.


Double shielded and fully screened to ensure immunity from Alien Crosstalk and other external interference, the Konix Cat6A patch lead is specified up to frequencies of 500Mhz. SSTP (Screened Shielded Twisted Pair) or SFTP (Screened Foiled Twisted Pair) cabling offers shielding between the pair sets and an overall sheath shield within the 100 Ohm twisted pair cable. This type of shielding protects EMI from entering or exiting the cable while protecting neighbouring pairs from crosstalk.


Need specific cabling? Contact QCC Custom Cables Build Centre to discuss a smart, cost-efficient solution to meet your custom cabling requirements


Product Info


- Premium quality Cat6A network cable for 10 Gigabit application


- High performance data communication cable, guaranteed up to 500Mhz


- Fully screened for alien crosstalk immunity


- Fully shielded construction virtually eliminates ANEXT


- 26AWG stranded copper conductors


- Construction 4 individually aluminium/Mylar wrapped twisted pairs,


  overall tinned copper braided shield, foamed PE insulation


- Fire Resistant/Flame Retardant PVC jacket


- Plugmaster 50u gold-plated and shielded Cat6A connectors


- Snagless design boot providing tab protection


- Construction four individually aluminium/Mylar wrapped twisted pairs, an overall tinned copper braided shield, foamed PE insulation and an fire retardant PVC jacket


Testing & Certification


- Meets augmented Cat6A TIA-568-C.2 requirements


- ACMA Australian Approval N18767


- Compliant with ANSI/TIA 568C.2


- UL444 and RoHS compliant


- Compliant with ISO/IEC60332-1, ISO/IEC60332-3 part 24, ISO/IEC 11801


- EN50288-4-2, EN50173 Approval


- Lifetime manufacturer’s warranty




Image Code Product Name Save For Later Price Quantity
15cm Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-0015
25cm Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-0025
30cm Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-003
0.5m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-005
1m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-01
1.5m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-015
2m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-02
2.5m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-025
3m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-03
4m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-04
5m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-05
7.5m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-075
10m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-10
15m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-15
20m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-20
30m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-30
50m Cat6A blue Konix LSZH STP ethernet cable
C6A-BE-50
